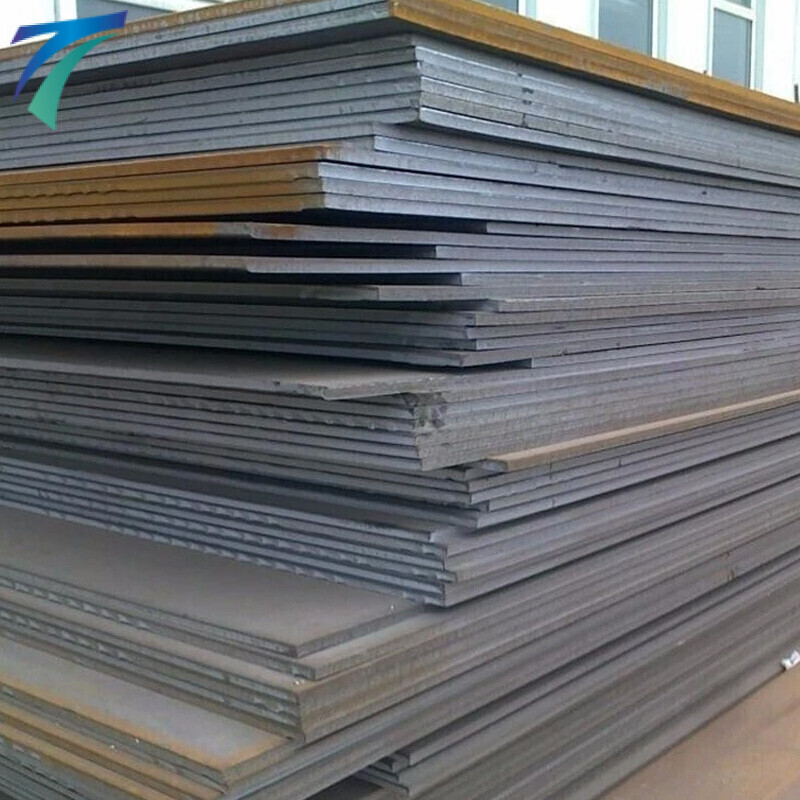

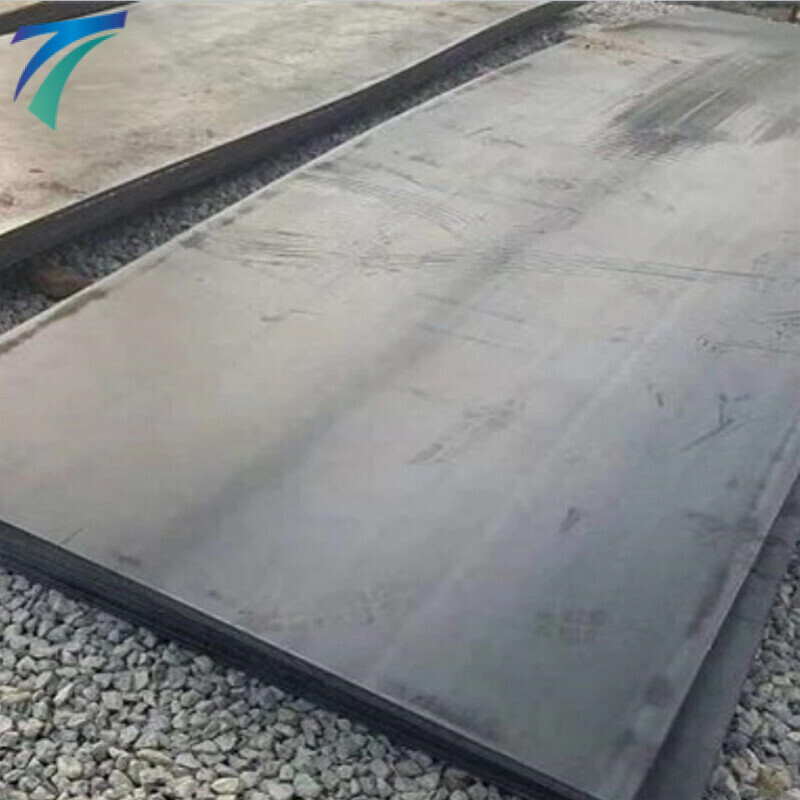

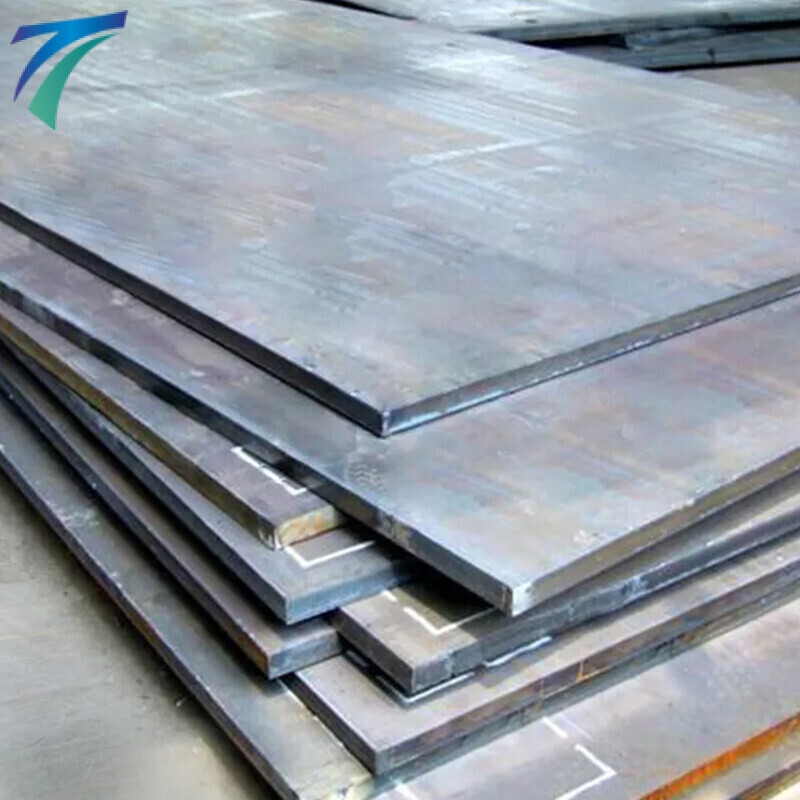

1045 Cold Rolled Steel Plate

1045 is a medium carbon steel is used when greater strength and hardness is desired than in the "as rolled" condition. Extreme size accuracy, straightness and concentricity combine to minimize wear in high speed applications. Commonly used in gears, shafts, axles, bolts, studs and machine parts.

WhatsApp:+8613256710395

Tel:+8613256710395

Email:Jessica@taihang-metal.com

Product Description

1045 Cold Rolled Steel Plate

Carbon steels are a category of steels with 0.12 to 2% carbon content. AISI 1045 is a medium carbon steel designed to be able to function in areas requiring greater strength and hardness. This steel possesses excellent size accuracy, concentricity, and straightness which together enable to minimize wear in high speed applications. AISI 1045 can be formed into turned, ground and polished bars that can be machined unsymmetrically with limited distortion.

The following sections will discuss in detail about AISI 1045 carbon steel.

Product Parameters
Product Name	1045 Cold Rolled Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition
Element	Content (%)
Carbon, C	0.43-0.50
Manganese, Mn	0.60-0.90
Sulfur, S	0.05 (max)
Phosphorous, P	0.04 (max)
Iron, Fe	Balance

Mechanical Properties
Properties	Metric	Imperial
Tensile strength	585 MPa	84800 psi
Yield strength	450 MPa	65300 psi
Modulus of elasticity	200 GPa	29000 ksi
Shear modulus (typical for steel)	80 GPa	11600 ksi
Poisson’s ratio	0.29	0.29
Elongation at break (in 50 mm)	12%	12%
Hardness, Brinell	163	163
Hardness, Knoop (converted from Brinell hardness)	184	184
Hardness, Rockwell B (converted from Brinell hardness)	84	84
Hardness, Vickers (converted from Brinell hardness)	170	170

Scope of Application

The following are the application areas of AISI 1045 carbon steel:

● Bolts

● Studs

● Gears

● Axles

● Shafts

● Machine parts.

Product Show

Application

Packaging And Transportation

Factory Display

FAQ

Q: Are You Manufacture or Trade Company?

A: We are the professional manufacturer of stainless steel products located in Shandong province, China. Welcome to contact us and visit our factory before you place orders.

Q: How do you guarantee the quality?

A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.

Q: Can I get free samples?

A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
